UL/cUL Certifications Supplier 25Kva Single Phase Pad Mounted Transformers for Power Distribution 4160V To 120V

  • 1
  • 2

Brand Name : WINLEY

Model Number : ZGD-25/12.47

Certification : UL/cUL, ISO

Place of Origin : CHINA

MOQ : 1unit

Price : $1000-$10000

Payment Terms : T/T

Supply Ability : 1000set/month

Delivery Time : 30days

Packaging Details : Plywood case

Capacity : 100Kva

Primary Voltage : 4160V

Secondary Voltage : 120/240V

Cooling Method : KNAN; Self-Cooled

Frequency : 60Hz

UL Certificate Number : UL-US-2564931-0; UL-CA-2548224-0

Efficiency Standard(s) : Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Winding Material : Copper

Contact Now

UL/cUL Certifications Supplier 25Kva Single Phase Pad Mounted Transformers for Power Distribution 4160V To 120V

WINLEY’s single-phase pad-mounted transformers are reliable outdoor power solutions designed for residential, commercial, and light industrial use. Built with weather-resistant enclosures mounted on concrete pads, they efficiently step down high-voltage utility power to low-voltage outputs (ranging from 15 to 333 kVA), featuring robust components like high-voltage bushings, fuses, and load-break switches for secure operation.

UL/cUL Certifications Supplier 25Kva Single Phase Pad Mounted Transformers for Power Distribution 4160V To 120V

UL-certified and compliant with ANSI/IEEE standards, these transformers ensure safety, efficiency, and adherence to strict industry regulations.Engineered for durability and long lifespan, WINLEY’s transformers deliver stable performance, low noise, and consistent energy distribution, making them ideal for urban and suburban applications.

UL/cUL Certifications Supplier 25Kva Single Phase Pad Mounted Transformers for Power Distribution 4160V To 120V UL/cUL Certifications Supplier 25Kva Single Phase Pad Mounted Transformers for Power Distribution 4160V To 120V

Single Phase Pad Mounted Transformer Main data

Phase Single Phase
Transformer Feed Type Loop Feed
Capacity 25 KVA
Vector Group II6
Primary Voltage 4160V
Secondary Voltage 120/240V
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class KNAN; Self-Cooled
Efficiency Standard(s) Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Winding Material Copper
Efficiency 98.90%
No Load Loss (in watts)* +/- 94W
Load Loss (in watts)* +/- 357W

Single Phase Pad Mounted Transformer Standard Features

  • HV Bushings*2
  • LV Bushings*3
  • Tap Changer
  • Bayonet Fuse
  • ELSP Fuse*1ELSP
  • Oil Level Gauge
  • Pressure Relief Valve
  • Thermomter
  • Fill Plug
  • Drain Valve
  • Ground Strap Copper
  • Grounding Spade Terminal*2

UL/cUL Certifications Supplier 25Kva Single Phase Pad Mounted Transformers for Power Distribution 4160V To 120V

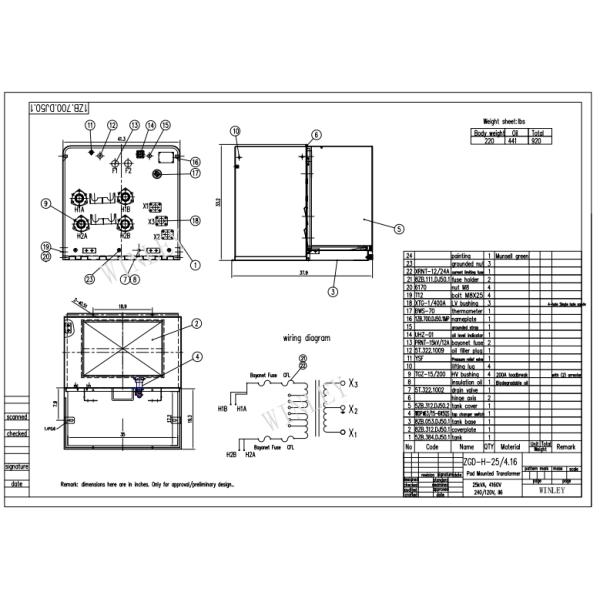

Single Phase Pad Mounted Transformer Drawing

UL/cUL Certifications Supplier 25Kva Single Phase Pad Mounted Transformers for Power Distribution 4160V To 120V

Specification

Single phase Pad mounted Transformer Specification
Rating High voltage(kV) No Load Loss On load Loss Height Depth Width Oil Weight(kg) Total Weight(kg)
(kVA) (mm) (mm) (mm)
15 kVA 34.5/19.92
13.8/8
13.2/7.6
12.47/7.2
or others
50 195 840 740 610 45 294
25 kVA 80 290 840 740 610 68 362
37.5 kVA 106 360 840 760 610 75 476
50 kVA 135 500 840 810 610 93 553
75 kVA 190 650 840 860 610 132 672
100 kVA 280 1010 910 1200 965 230 714
167 kVA 435 1530 1000 1200 965 265 913
250 kVA 550 2230 1250 1300 1430 325 1106

Production process

UL/cUL Certifications Supplier 25Kva Single Phase Pad Mounted Transformers for Power Distribution 4160V To 120V

UL/cUL Certifications Supplier 25Kva Single Phase Pad Mounted Transformers for Power Distribution 4160V To 120V

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
